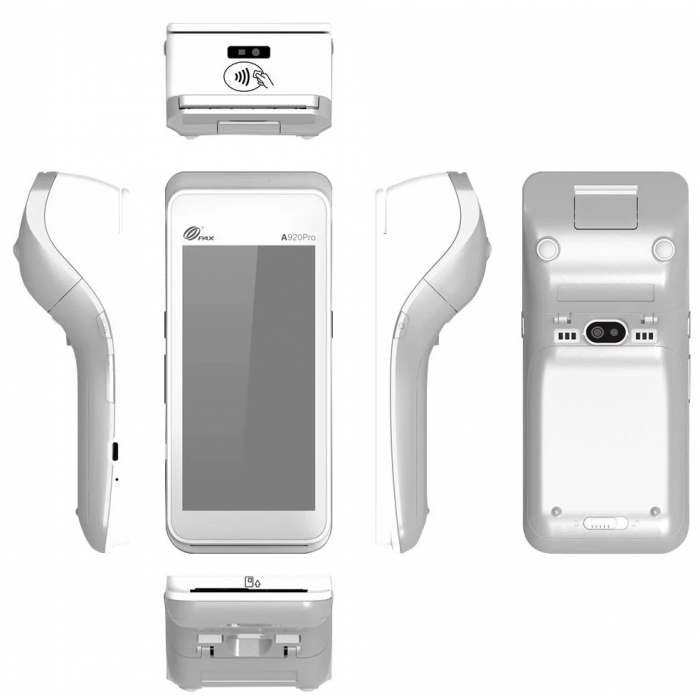

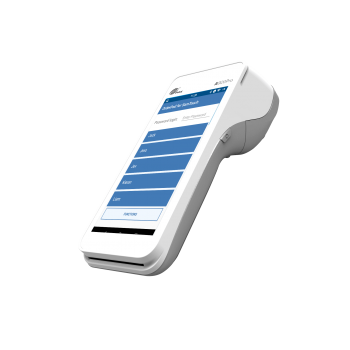

Pax A920Pro Android Smart Mobile Pos Terminal

Condition:Brand New In Box

Origin:China

Device Specification Sheet

Basic Information

• Device Type: Portable
• Operating System: PayDroid (Android 10, PCI PTS 6.x)
• Transaction Types: Chip & PIN, Contactless, Magnetic Stripe

Display & Performance

• Display: 5.5” IPS HD+ (720×1440 px), Multi-point Capacitive Touch
• Processor: Android 10 (PCI 6)
• Memory: 16 GB eMMC Flash, 2 GB DDR RAM
• Storage: microSD card support up to 128 GB

Battery & Power

• Battery: 5150 mAh, 3.7 V, Li-Ion, Rechargeable

SIM & SAM

• Slots: 1 Micro SIM + 2 SAM / 1 Micro SIM + 1 SAM + 1 SAM

Audio, Ports & Buttons

• Audio: Buzzer, Speaker, Microphone
• Ports: USB-C OTG, 6 PIN POGO PIN
• Buttons: Power, Volume +/-, Quick Scan Button

Camera & Scanner

• Front Camera: 5 MP
• Rear Camera: 8 MP
• Scanner: Integrated Barcode Scanner

Printer

• Type: Integrated Thermal Printer
• Speed: 40 lines/sec
• Paper Roll Diameter: 40 mm

Connectivity

• Wi-Fi 2.4 GHz, 4G, NFC, Bluetooth, Ethernet, GPS

Physical Details

• Dimensions: 178.3 × 78.0 × 54.2 mm
• Weight: 390 g

Certifications

• PCI PTS 6.x, SRED, EMV L1 & L2, EMV Contactless L1
• Visa payWave, Mastercard Contactless, American ExpressPay
• Discover D-PAS, JCB J/Speedy, Interac Flash, UPI qUICS
• Mastercard TQM, Common.SECC UKCC
• CE, RoHS, ATEX, FCC, IC, PTCRB, WPC, BIS, Anatel, ABEC
